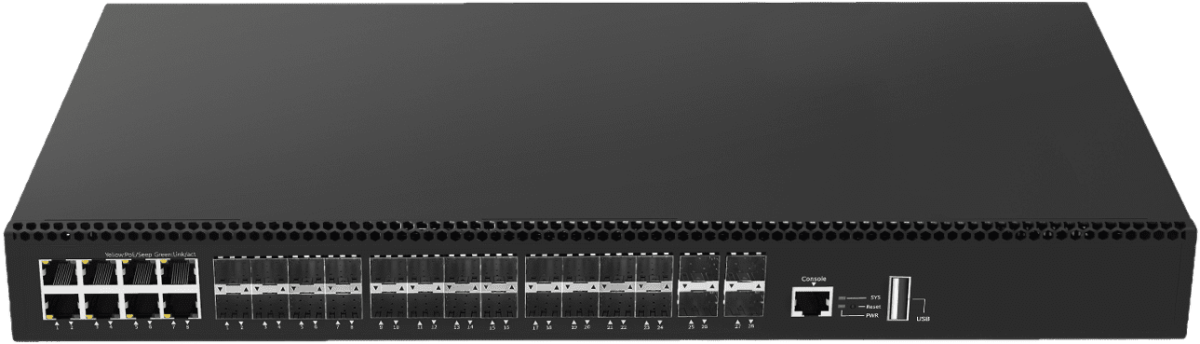

16/8/4 Managed Switch

LN-2316XF8C-4XGF is the Layer 2 managed Gigabit switch. This switch series is the latest generation of Web-Smart switch, purposely designed and optimized for network performance, operational cost, ease of management and reliability for small and medium business (SMB) market. The series deliver full Gigabit access and unparalleled scalability to 10G performance. It provides high-density performance with 128Gbps switching capacity. It supports comprehensive end to end QoS as well as flexible and rich management, security settings, which can meet the high speed, secure and smart requirement for small and medium-size enterprise networks. The powerful network security features also make the switch performs effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.

Product Highlights

  • 4x1G/2.5G/10G SFP+ slots uplink
  • 16x1G SFP ports + 8x1G SFP/RJ45 COMBO ports downlink
  • Power Efficiency
  • Full Layer 2+ feature set with Marvell ROS
  • Open Flow support
  • Up to 8 units’ stack
  • Advanced QoS
  • Full Layer 2+ software support

Basic Properties

Parameter
Marvell Chipset Alleycat3BHX
Switching capacity 128 Gbps
Packet forwarding rate 128 Mpps
Buffer 12M bit
Consumption ≤40W
MAC address tab 16K
Fixed ports 1Gb/s 16*1G SFP ports, 8*1G SFP/RJ45 COMBO ports
Fiber ports SFP/ SFP+ 4
Other Ports Console, OOB, USB 2.0
Dimensions 440*245*44mm
