L3 48-Ports Managed Switches

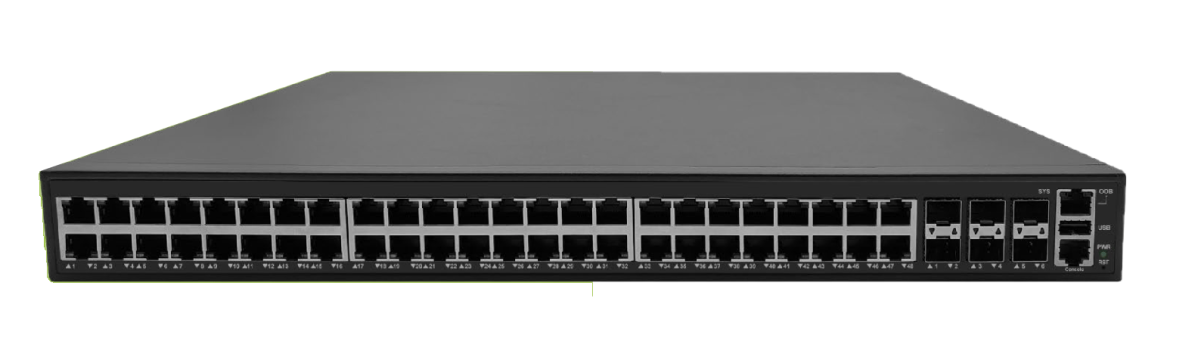

The LN-3848G-6Y switch is a Gigabit Ethernet access/aggregation switch with four 25G SFP uplinks. The switch is ideal as a high-performance Gigabit access/aggregation switch with 1 Gigabit downlinks, or as an enterprise core switch. This switch is also positioned as a cloud edge access/aggregation switch, connecting IOT and other devices in enterprise and SMB deployments. It is also an ideal Gigabit access/aggregation switch for SMB, enterprise, and campus networks.

The LN-3848G-6Y/LN-3848GP-6Y is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

Product Highlights

  • Best price-performance Gigabit Ethernet access/aggregation switch with 25G uplinks
  • ITU-T G.8032 ERPS L2 Ring protection with сomprehensive and field-proven soſtware features for ISPs/ Carriers, providing broadband access, IPTV services
  • Full L3 features with commonly-used unicast and multicast routing protocols, redundant routing protocols, and DHCP relay and server
  • Enhanced Security, IPv6, and Multicast features
  • Simple management (CLI, SNMP, Web)
  • Complete Private MIB to fully control and monitor the switch via customer’s EMS

Basic Properties

LN-3848G-6Y LN-3848GP-6Y
Ports 48 RJ-45 10/100/1000BASE-T
Ports + 6 SFP28 25G Uplink
Ports
48 RJ-45 10/100/1000BASE-T
Ports + 6 SFP28 25G Uplink
Ports
Capacity 396 Gbps 396 Gbps
Forwarding Rate 295 Mpps 295 Mpps
MAC Address Table 32K 32K
CPU Dual-Core ARM – 8.2 Cortex –
A55
Dual-Core ARM – 8.2 Cortex –
A55
Memory 1 GB DDR4 1 GB DDR4
Storage SPI 32MB + 256 MB NAND Flash
Memory
SPI 32MB + 256 MB NAND Flash
Memory
USB 1 x USB2.0 1 x USB2.0
Serial Console 1 x RJ45 1 x RJ45
Stacking 2xSFP28 stacking led 2xSFP28 stacking led
PSU 1x120W Open frame PSU 100-
240V 50/60Hz
Dimensions WxDxH 442/420/43.6 mm WxDxH 442/420/43.6 mm
Copper Ports 48 48
Fiber Ports 6 SFP28 25G 6 SFP28 25G
Other Ports Console, OOB(optional) USB 2.0 Console, OOB(optional) USB 2.0
