L3 Gigabit Ethernet Switch

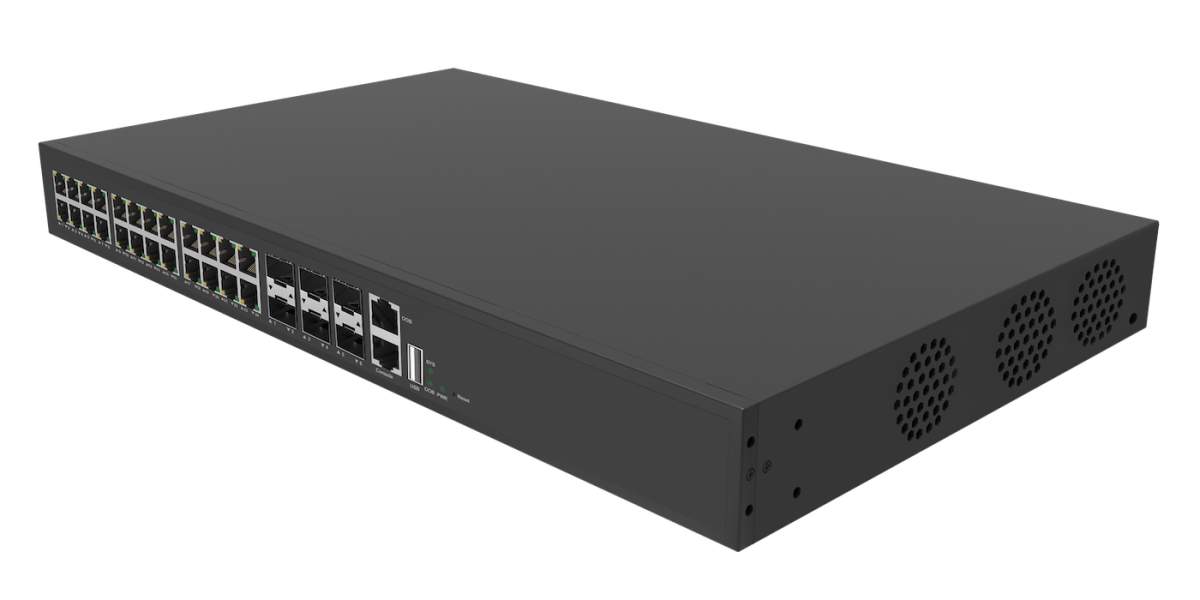

The LN-3824G-6Y switch is a Gigabit Ethernet access/aggregation switch with six 25G uplinks. The switch is ideal as a high-performance access/aggregation switch with 1 Gigabit downlinks, or as an enterprise core switch. This switch is also positioned as a cloud edge access/aggregation switch, connecting IOT and other devices in enterprise, SMB deployments and campus networks.

The LN-3824GP-6Y is a PoE switch that can provide up to 90 Watts to power devices such as wireless access points, VoIP phones, surveillance cameras, IoT devices etc. over Cat 5 UTP cable, eliminating the need for individual power sources. The LN-3824G-6Y/LN-3824GP-6Y is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

Product Highlights

  • Best price-performance Gigabit Ethernet access switch with 10G uplinks
  • Low power consumption with fanless and noiseless design
  • ITU-T G.8032 ERPS L2 Ring protection with comprehensive and field proven soſtware features for ISP/ Carrier to provide broadband access, IPTV services
  • L2+/ Lite L3 feature upgrades the L2 switch with routing functionality
  • Enhanced Security,IPv6 and Multicast features
  • Simple management (CLI, SNMP, Web)
  • Complete Private MIB to fully control and monitor the switch via customer’s EMS

Basic Properties

LN-2624G-4XGF LN-2624GP-4XGF
Ports 24 RJ-45 10/100/1000BASE-T
Ports + 6 SFP28 25G Uplink Ports
24 RJ-45 10/100/1000BASE-T
Ports + 6 SFP28 25G Uplink Ports
Capacity 128 Gbps 128 Gbps
Forwarding Rate 95 Mpps 95 Mpps
MAC Address Table 32K 32K
CPU Dual-Core ARM – 8.2 Cortex – A55 Dual-Core ARM – 8.2 Cortex – A55
Memory 1 GB DDR4 1 GB DDR4
Storage SPI 32MB + 256 MB NAND Flash Memory SPI 32MB + 256 MB NAND Flash Memory
USB
1 x USB2.0 1 x USB2.0
Serial Console 1 x RJ45 1 x RJ45
POE 16x 802.3at@30W
8x 802.3bt@90W
Dimensions WxDxH 442/420/43.6 mm WxDxH 442/420/43.6 mm
