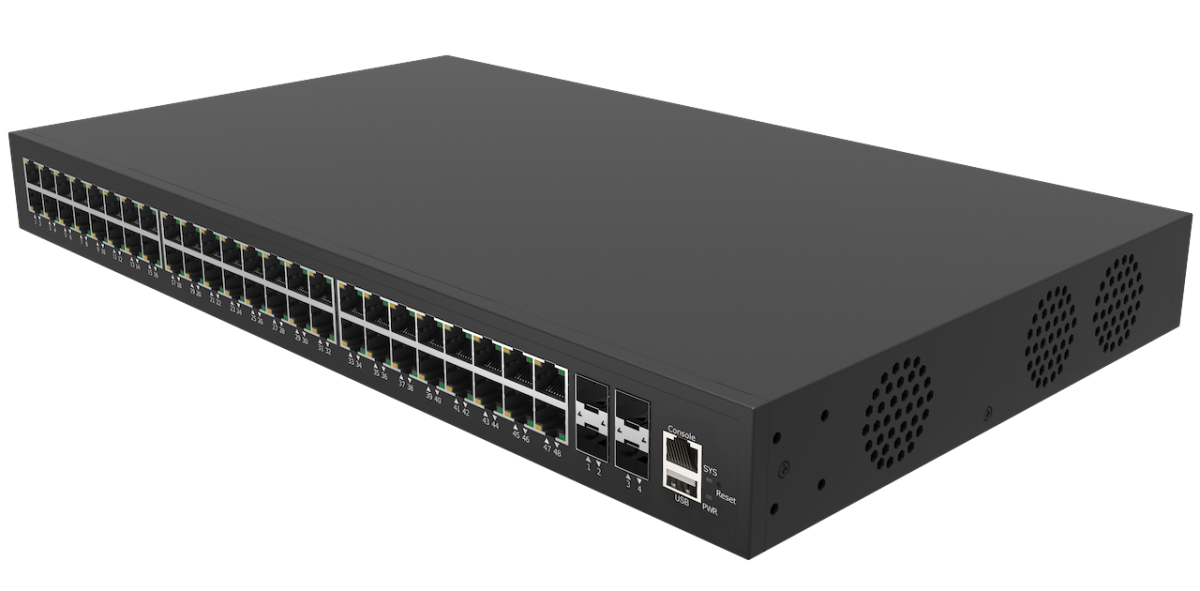

48-Ports Managed Switches

The importance of maintaining a strong and dependable business network only grows as your business adds more employees, applications, and network complexity. This switch series is the latest generation of Web-Smart switch, purposely designed and optimized for network performance, operational cost, ease of management and reliability for small and medium business market.

New generation of Switch series provide 48 port configurations with high performance, various management tools, and rich and powerful L2 features including Power over Ethernet (PoE), and this series is also an ideal access-edge solution.

Product Highlights

  • Power Budget fully supports for all IEEE 802.3af port usage
  • Efficient Ethernet (Energy Efficient Ethernet)
  • Intuitive Web-Based GUI
  • Metal Case
  • Intuitive Web based GUI
  • Store and Forward switching
  • Non-blocking switching – wire speed
    reception and transmission
  • Full duplex and half- duplex operation with
    IEE802.3x flow control and backpressure
  • Auto-negotiation for automatic connection
  • Auto-MDI/MDIX eliminates the need for
    crossover cables
  • Support Jumbo Frame
  • Spanning Tree
  • L2 Multicast: IGMP/MLD Snooping
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.3af/at
  • POE+/ no POE+ (optional)
  • Power Budget (optional)
  • SFP/ SFP+ (optional)

Basic Properties

48x1G + 4xSFP/SFP+ 48x1G + 4xSFP/SFP+ POE+ 48x1G + 4xSFP/SFP+ POE+
Marvell Chipset 98DX226S*2 98DX226S*2 98DX226S*2
FLASH 128 Mb 128 Mb 128 Mb
RAM 512 Mb 512 Mb 512 Mb
FANs N/A 2 2
PSU 40W 440W 640W
PoE Budget N/A 400W 600W
MTBF 100,000h 100,000h 100,000h
Copper Ports 48 48 48
Fiber Ports 4 4 4
Other Ports Console, OOB(optional) USB 2.0 Console, OOB(optional) USB 2.0 Console, OOB(optional) USB 2.0
Dimensions 440*300*44mm 440*300*44mm 440*300*44mm
